Color Green Military‎

Color Black Green Military‎

Color Black Police/Special Force‎

Color Orange EMS Personnel/Rescue Services/Ambulance Medical Services‎

Features

CE Mark

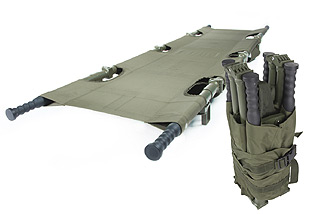

The MedEvac 4 combat stretcher is the ultimate rescue stretcher for the combat medic core. Folds in fours, light weight with extremely high tensile strength. Able to deploy quickly and efficiently on the battlefield.

Super Compact

The Med Evac4 is a lightweight folding stretcher that folds into four segments. Only 20.8” (52cm) when folded, it is short enough to fit comfortably on your back, while not protruding above shoulder level. It allows for complete freedom of motion - helmets won’t knock into it even if when the neck twists. No worries about getting hung up on low openings or presenting a high profile target to enemy fire; as long as the shoulders are out of sight, the Med Evac4 is out of sight.

Lightweight

The MedEvac4 weights only 6.1kg (13.42lbs). It opens fast and easily (within 6 seconds). Just snap it open and its patented joint configuration automatically locks in place. No need to waste precious seconds fiddling with locking mechanisms as with other folding stretchers. Once it opens, it stays open - no chance of accidents - the automatic locking joints guarantee it. Refolding is just as fast - only seven seconds.

Not just for military

All the characteristics that make the MedEvac4 the ideal battlefield stretcher also make it perfect for a wide range of civilian rescue and evacuation operations. Fire fighting, helicopter evacuation, ski patrol, wilderness expeditions, camping, etc.
The MedEvac4 is the best stretcher for the job; lightweight, portable, easy to use and reliable.

The MedEvac4 tactical stretcher is the best stretcher for the job; lightweight, portable, easy to use and reliable.

Rugged and reliable simplicity

The MedEvac4’s revolutionary joint configuration eliminates the need for springs and complicated locking mechanisms. With only 3 folding joints on either side, the MedEvac4 opens and closes using natural motions. It doesn’t take a genius to use the MedEvac4, only to design it. The poles are tested to take 570Kgs of stress without signs of material fatigue.

Easy transportation and storage

The MedEvac4's small folded volume and light weight means more beds can be stowed in tight places. That's important in evacuation carriers such as helicopters, where space and weight is at a premium.

Built from ALTRUNIUM™

ALTRUNIUM

The MedEvac4 Tactical Stretcher is built using ALTRUNIUM® - an extremely stable molecular structure formulated by our team of experienced metallurgist.

Specification

Product Information
Item code MedEvac4 Folding Military Stretcher

Technical Information
Dimension (Deploy) Approximately 2150mm x 565mm x 100mm
Dimension (Folded) Approximately 547mm x 216mm x 190mm
Weight Approximately 6.5kg
Frame material Altrunium® with powder coating finish
Patient restraints Built-in patient restraints with buckle
IV pole attachment point 6 slots for our tactical adjustable IV pole
Crossbar support Reinforced ring made from Altrunium®
Handle type Grooved to human hand tactical black
Payload 570kg
Mid-point deflection
(95kg load)
Less than 2cm
Ground clearance 10cm
Static load Over 750kg
Dynamic presses Over 50,000 repetitions with 250kg presses
Leg crossbar Altrunium® crossbar with powder coating finish and support strap to prevent collapsing.

Canvas Information
Canvas type Heavy Duty Laminated PVC, waterproof
Weight 240gsm
Warp Min. 2400N / 50mm
Weft Min. 1400N / 50mm

*Specifications are subject to change without prior notice.

Accessories

Accessories
Item Description
Tactical IV Pole For supporting an IV (Intravenous) drip
Tactical Litter Stand For elevation of the patient on Stretcher to waist height. Elevation allows Doctors, Combat Medics and Medical Personnel to examine the patient and conduct triage without squatting or kneeling down. May also assist in field surgeries.
MedEvac4 Backpack Designed for the combat medic to carry 1 X MedEvac4 Tactical Stretcher, 1 X Tactical IV pole and Medical supplies. Compartmentalized for easy access of medical supplies.
Stretcher Backrest Stretcher Backrest is designed for MedEvac4 Tactical Stretcher to assist the patient to rest at 45 or 90 degrees.
Stretcher Wheel Cart/Wheeled Litter Carrier Stretcher Wheel Cart/Wheeled Litter Carrier is a foldable, lightweight casualty transport system that allows one person to transport a casualty strapped to a stretcher. It can also act as a litter stand in the battlefield or medical stations, as it elevates the patient on the stretcher to waist height.
Gryphon Litter Carrying Harness The Gryphon® Harness allows 2 soldiers to carry a patient on a stretcher, while maintaining their ability to point their weapon forward.
MedEvac 4 Carrier The MedEvac4 Carrier is designed as a simple backpack for our MedEvac4 Tactical Stretcher, as well as compatible 4 folding models.
MedEvac 4 Bag The MedEvac4 Bag is designed as a simple carry bag for our MedEvac4 Tactical Stretcher.
Detachable Wheel for Stretchers Detachable Wheel is designed and developed to reduce load on Stretcher Bearers. It allows one person to transport a patient strapped onto a Stretcher.



MedEvac4 Folding Stretcher

MedEvac4 Folding Stretcher

MedEvac4 Folding Stretcher

MedEvac4 Folding Stretcher

MedEvac4 Folding Stretcher



Video



Demonstration of deployment of the MedEvac4 under 8 sec



Adjusting MedEvac4 Stretcher Legs
